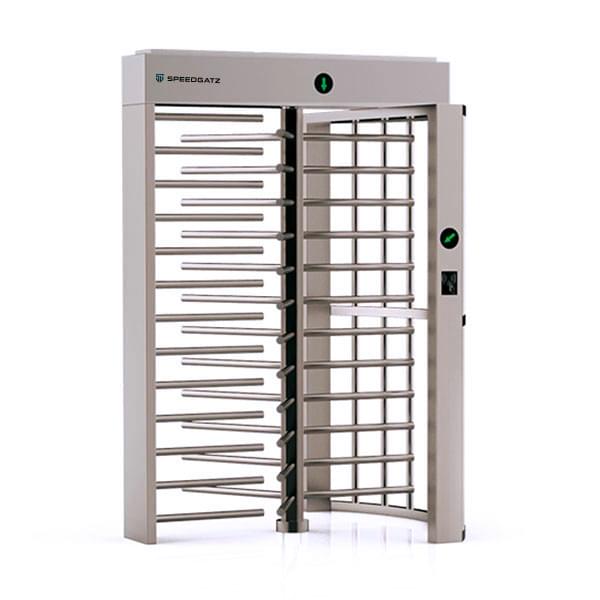

Speedgatz Full height turnstile Model SFHT – 3000 is an ideal for solution to control pedestrian access in areas requiring high level of security. It prevents unauthorized access by ensuring access of one person at a time. It is designed for Indoor as well as harsh outdoor environment. The robust stainless steel construction ensures a long life of these turnstiles. High–performance bi-directional full-height turnstile designed for heavy duty applications and intensive pedestrian movement areas. It can be operated with the help of Push button, Wired/Wireless remote control and can be integrated with any biometric equipment.
- Indoor /Outdoor use
- Flow Rate- 30 persons/min
- Operations-Push button
- Access Control
- Vandalism-proof design
- Long service life
- Smooth and quiet operation
- Electronically controlled passage in both direction
- Available in Servo(Motorized) or Electro-Mechanical Version
- Fail-lock or fail-safe configuration
- Self-centering mechanism
- Anti back up device prevents reverse rotation
- Wings reset automatically after each pass
- Uni/Bi directional
- Audible alarm
- LED Indication
- 90 degree and 120 degree rotor option
Full height Turnstiles are used at a wide variety of places including :
- Stadiums
- Amusement parks
- Mass transit stations
- Office lobbies
- Airports
- Embassies
- Factories
- Power plants
- commercial complexes
- Sports complexes
- Research organizations.
| Model | SFHT-3000 |
| Lane Configuration | Single |
| Mechanism | Servo/Electromechanical |
| Standard Housing | AISI 304* |
| Rotor Configuration | 4 x 90 degree / 3 x 120 degree |
| Housing Dimension(w x d x h ) | 1630 x 1500 x 2310 mm |
| Flow Rate(Pass per min) | 30 persons/min** |
| Passage width | 650mm |
| IP Rating(Standard) | IP 54*** |
| Power Supply | 100-240 V,50 hz |
| Power Consumption | 35 W |
| MCBF | 10 Million Cycle |
| Duty Cycle | Continuous use |
| Operating Temperature in Celsius & Humidity | -30 + 70 degree celsius, 95% maximum |
| Input Signal | 12v dry, RS 485 TCP/IP |
| Compatibility | With all Kind of Access Control & Security Systems |
*Available housing on request- AISI 316
** Flow rate may vary depending on type of readers
*** IP 66 Available on request for harsh environmental conditions
