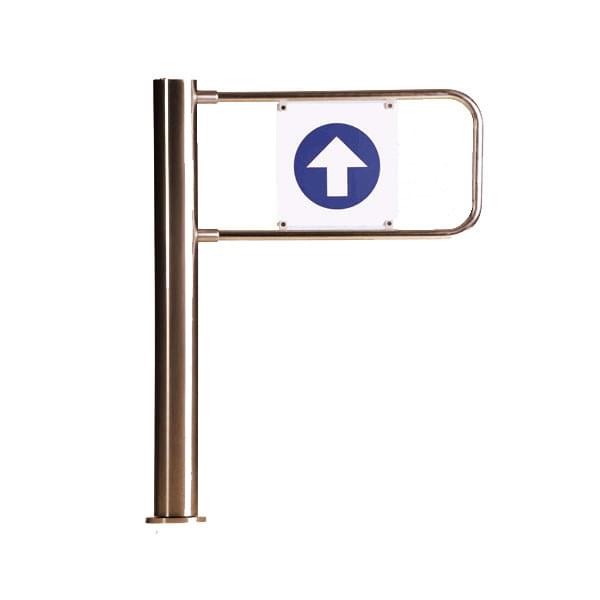

P GATE-PG-4000

Speedgatz P gate Model SSPG-4000 is designed for the people with special needs or entrances which needs entry of luggage, trolleys etc. It is designed in such a way where passage width is around 900 mm which facilitates movement of wheelchairs or trolleys easily. Smooth & silent motorized drive mechanism along with safety features ensures high comfort to the user.

Automatic or semi- automatic version with extrawide walkway of 900 mm facilitates smooth movement of larger objects inside the secured area.

Request Proposal Download Datasheet
  • Extrawide walkway
  • Low Power consumption
  • Uni/Bi-directional
  • Robust swing arm
  • Arms free /locked option in power failure
  • Low maintenance
  • Aesthetic outfit

The application areas for these P-gates include:

  • Airports
  • Corporate offices
  • Amusement parks
  • R&D Centres
  • Factories
  • Multiplexes
  • Hotels
  • Government Facilities etc

Model SPG-4000
Mechanism Servo/Electromechanical
Standard Housing Stainless Steel AISI 304
Housing Dimension(w x d x h ) 230x 440x 950mm
Flow Rate(Pass per min) 20 persons/min*
Passage width 600-900mm
Unlock time 2 sec
IP Rating(Standard) IP 54**
Power Supply 100-240 V,50 Hz
Power Consumption 50 W
MCBF 2 Million Cycle
Duty Cycle Continuous use
Operating Temperature in Celsius & Humidity -30 + 70 degree celsius
Operation Push button/Access control
Compatibility With all Kind of Access Control & Security Systems

* Flow rate may vary depending on type of readers

** IP 66 Available on request for harsh environmental conditions
