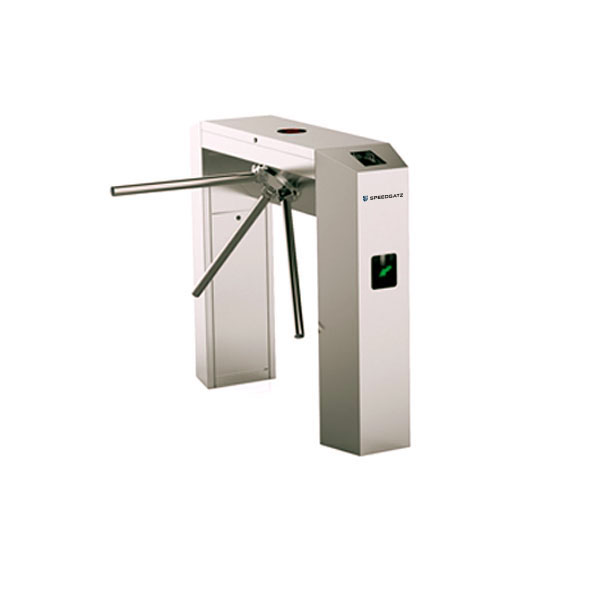

Speedgatz Waist height/Tripod turnstile Model STT – 1020 is an innovative design that can be used in bi-directional control applications with high volume pedestrian traffic. This unit has been designed to provide a cost effective anti-tailgating pedestrian solution utilizing a tri-arm bar configuration with 3*120°movement. Passage in both directions, electronically controllable. It can be operated with the help of Push button, Wired/Wireless remote control and can be integrated with any biometric equipment.
Standard Features:
- Indoor /Outdoor use
- Flow Rate- 30 persons/min
- Operations-Push button
- Access Control
- Long service life
- Smooth and quiet operation
- Electronically controlled passage in both direction
- Available in Automatic or Semi Automatic Version
- Free or locked configuration
- Self-centering mechanism
- Counter available (Optional)
- Wings reset automatically after each pass
- Uni/Bi directional
- LED Indication
- Audible Alarm
- 3 x 120 degree rotor arms
- Drop Arm feature available
Tripod Turnstiles are used at a wide variety of places including :
- Educational institutions
- stadiums
- amusement parks
- mass transit stations
- office lobbies
- airports
- Embassies
- factories
- power plants
- commercial complexes
- Sports complexes
- Research organizations etc.
| Model | STT-1020 |
| Mechanism | Automatic or Semi Automatic Version |
| Standard Housing | AISI 304* |
| Rotor Configuration | 3 x 120 degree |
| Housing Dimension(w x d x h ) | 950x280x 1210mm |
| Flow Rate(Pass per min) | 30 persons/min** |
| Passage width | 550-600 mm |
| IP Rating | IP 54 |
| Power Supply | 100-240 V,50 HZ |
| Power Consumption | 40 W |
| MCBF | 5 Million Cycle |
| Duty Cycle | Continuous use |
| Operating Temperature in Celsius & Relative Humidity | -30 + 70 degree celsius, 95% Maximum |
| Input Signal | 12 V dry contact, RS 485 TCP/IP |
| Compatibility | With all Kind of Access Control & Security Systems |
*Available housing on request- AISI 316/Powder Coating
** Flow rate may vary depending upon type of readers
